High quality-PVC pipe making machine SX-SJSZ manufacturer from China Qingdao Shicheng Plastic Machinery Co., Ltd

Payment Terms:	T/T,L/C,
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SX-SJSZ

Production Capacity: 100 sets per year

Delivery Date: 45 days after receiving the...

Use: Others

Brand Name: Shicheng

Raw material: PVC

Means of Transport: Ocean,

Packing: In seaworthy packing

Plastic Type: PVC

Shaft Design: Double

Extruder: SJSZ51 SJSZ65 SJSZ80 SJSZ92

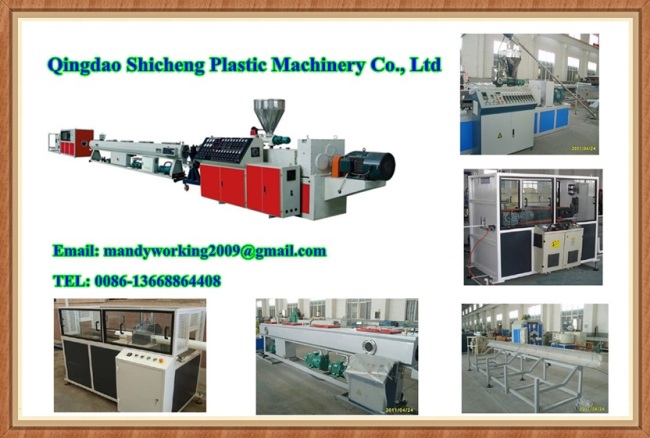

High quality-PVC pipe making machine
High quality
High function
Stable character

High quality-PVC pipe making machine

Advantages of PVC pipes:

1. Excellent in chemical corrosion, no rust;

2. With self extinguishing and flame retardant;

3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;

4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;

5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;

6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;

7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.

Main Applications:

1.Material:PVC

2.Line speed: 3~5 m/min.

3.The height of the centerline of the line:1000mm.

4.Operation direction:From right to Left.

5.Ruijie Machinery remains the right to improve the specification of the line, if there is any modification in the future, customer will not be informed.

6.Cooling water:15-16 M^3/h

7.Compressed air: 0.3m^3, 0.4Mpa-0.8Mpa.

Model number	PVC-16/63	PVC-20/110	PVC-50/160	PVC-75/250	PVC-110/315	PVC-200/450	PVC-315/630	PVC-500/800
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm	500-800mm
Max output	120kg/h	120kg/h	180kg/h	300kg/h	450kg/h	650kg/h	800kg/h	1400kg/h
Production rate	1.5-15m/min	0.8-8m/min	0.5-5m/min	0.4-4m/min	0.3-2m/min	0.1-1m/min	0.07-0.7m/min	0.05-1 m/min
Extruder model	SJZ-50/105	SJZ-50/105	SJZ-55/110	SJZ-65/132	SJZ-80/156	SJZ-92/188	SJZ-92/188	SJZ-105/220
Installed power	45kw	45kw	55kw	75kw	105kw	160kw	205kw	305kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm	1350mm
Installation area	222.52.0m	242.82.0m	242.82.0m	302.82.2m	353.02.4 m	363.02.4 m	383.22.8 m	423.53.2 m
